This product is a 6-line ESD protection diode array

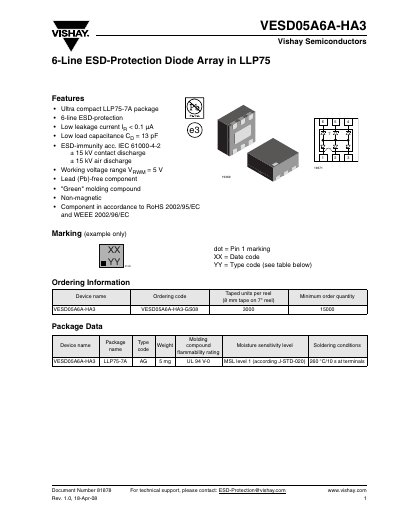

The VESD05A6A-HA3 is a 6‑line ESD‑protection diode array packaged in an ultra‑compact LLP75‑7A case. It offers low leakage current (IR < 0.1 µA), low load capacitance (CD = 13 pF), and ESD immunity of ±15 kV per IEC 61000‑4‑2. The device is lead‑free, RoHS‑compliant and non‑magnetic.
Key electrical characteristics include a working voltage range of 5 V, reverse stand‑off voltage of 5 V, reverse breakdown voltage of 66.7 V, and typical clamping voltages of 12‑13 V (reverse) and 3.2‑4 V (forward) at 2.5 A peak pulse current. Ordering information, package dimensions, and regulatory statements are also provided.
| Package | LLP75‑7A |
|---|---|
| Number of protected lines | 6 lines |
| Working voltage range | VRWM = 5 V |
| Leakage current | IR < 0.1 µA |
| Load capacitance | CD = 13 pF |
| ESD immunity (contact discharge) | ±15 kV |
It can protect up to six lines.
The leakage current is less than 0.1 µA.
The device is supplied in an LLP75‑7A package.
It meets IEC 61000‑4‑2 with ±15 kV contact and air discharge.
