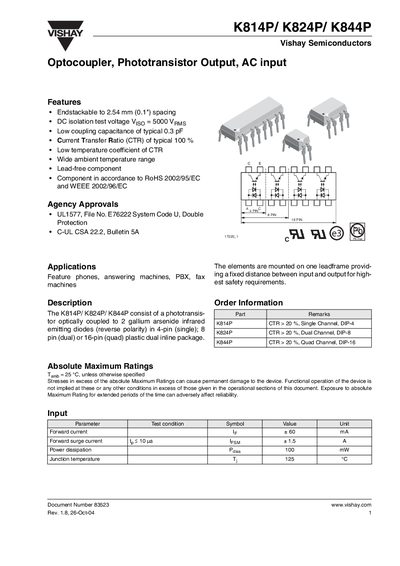

K814P/ K824P/ K844P is an optocoupler from Vishay Semiconductors, with a phototransistor output and AC input. The product has low coupling capacitance, low temperature coefficient, and wide ambient temperature range.
The document provides detailed electrical characteristics, switching performance, and mechanical dimensions for the Vishay K814P, K824P and K844P optocoupler series. It includes features, applications, absolute maximum ratings, and compliance information.
Key sections cover typical characteristics, package dimensions for single, dual and quad channel versions, and environmental policies. The data is intended for designers selecting optocouplers for isolation and signal transfer applications.
