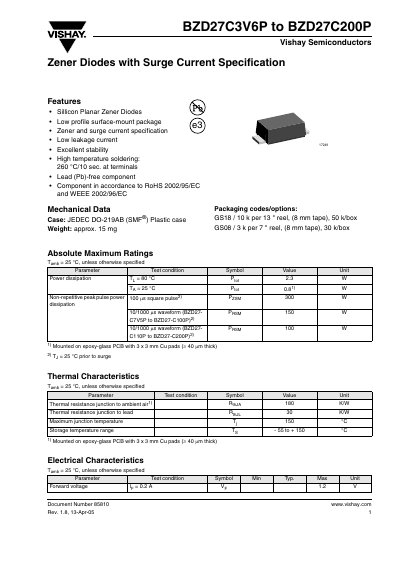

This document describes the Zener diodes of the BZD27C3V6P to BZD27C200P models from Vishay Semiconductors. The product features include low profile surface-mount package, Zener and surge current specification, low leakage current, excellent stability, etc.
The document provides detailed specifications for the Vishay BZD27 series Zener diodes ranging from part numbers BZD27C3V6P to BZD27C200P. It includes features such as low‑profile surface‑mount packages, low leakage, high temperature soldering capability, and RoHS compliance.
Key sections cover mechanical data, absolute maximum ratings, thermal and electrical characteristics for both voltage‑regulator and protection applications, typical characteristic curves, package dimensions, and regulatory information such as ozone‑depleting substances policy and legal disclaimer.
