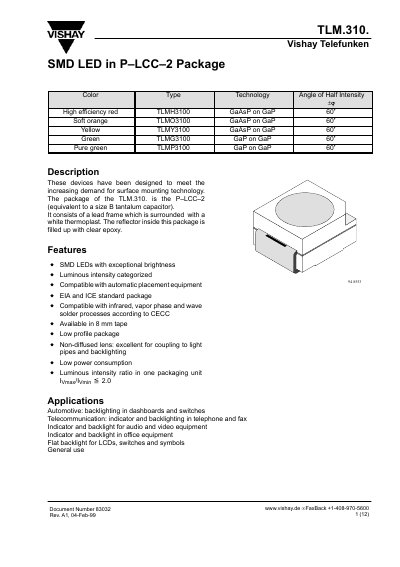

TLM.310. Vishay Telefunken is an SMD LED produced by Vishay Telefunken. It has the characteristics of high brightness, low power consumption, compatibility with automatic placement equipment, high reliability, etc. It is suitable for backlighting and indicator lamps of automotive dashboards and switches, telephones and fax machines, audio and video equipment, office equipment, LCD displays, switches and symbols.
The TLM.310 series are surface‑mount LEDs offered in high‑efficiency red, soft orange, yellow, green, and pure‑green colors. They are supplied in a P‑LCC‑2 package (size B tantalum equivalent) and are compatible with automatic placement equipment and various soldering processes.
The document provides absolute maximum ratings, electrical and optical characteristics, typical performance curves, mechanical dimensions, PCB layout guidance, and a brief environmental policy statement.
| Package type | P‑LCC‑2 (size B tantalum equivalent) |
|---|---|
| Forward voltage (20 mA) | 2.43 V |
| Reverse voltage | 6 V |
| Junction temperature (max) | 100 °C |
| Operating temperature range | -40 °C to +100 °C |
| Storage temperature range | -55 °C to +100 °C |
| Soldering temperature (max) | 260 °C |
| Thermal resistance (mounted) | 400 K/W |
It uses a P‑LCC‑2 package, which is equivalent to a size B tantalum capacitor.
The forward voltage is 2.43 V at 20 mA.
It operates from –40 °C up to +100 °C.
