This document describes the features and characteristics of Vishay Telefunken's TLUR54../64.. LED products, including DC and pulse operation, luminous intensity categorization, 5mm package, etc.

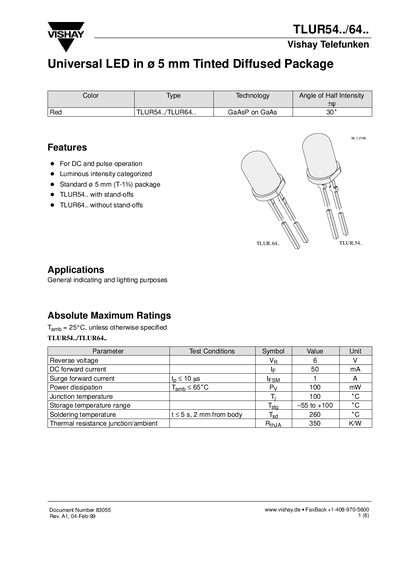

The TLUR54/TLUR64 series are universal 5 mm tinted diffused LEDs offered by Vishay Telefunken. They are intended for general indicating and lighting purposes and can be used in both DC and pulse operation. The document lists features, applications, and maximum ratings for the devices.
Detailed electrical and optical characteristics are given, including forward voltage, reverse voltage, luminous intensity, dominant and peak wavelengths, and thermal parameters. Mechanical drawings show dimensions, PCB layout, and package details. The last page contains Vishay's ozone‑depleting substances policy statement.
| Reverse voltage | 6 V |
|---|---|
| DC forward current | 50 mA |
| Junction temperature | 100 °C |
| Thermal resistance (junction/ambient) | 350 K/W |
The maximum reverse voltage is 6 V.
