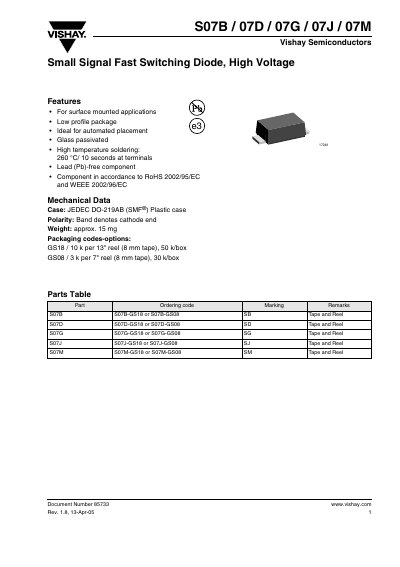

This is a Vishay Semiconductors S07B / 07D / 07G / 07J / 07M small signal fast switching diode with high voltage characteristics, suitable for surface mount applications. The diode uses JEDEC DO-219AB (SMF®) plastic packaging and weighs approximately 15 mg. The terminals can be soldered at 260 °C/10 seconds.
The S07 series are surface‑mounted, low‑profile small‑signal fast switching diodes offered by Vishay. They feature a glass‑passivated package, RoHS compliance, and are suitable for automated placement and high‑temperature soldering.
The document provides absolute maximum ratings, thermal and electrical characteristics, typical performance curves, and mechanical dimensions for each voltage variant (100 V to 1000 V). Ordering codes, package dimensions, and environmental policy statements are also included.
| Maximum repetitive peak reverse voltage (VRRM) | 100 V (S07B) – 1000 V (S07M) |
|---|---|
| Maximum RMS voltage (VRMS) | 70 V (S07B) – 700 V (S07M) |
| Maximum DC blocking voltage (VDC) | 100 V (S07B) – 1000 V (S07M) |
| Maximum average forward current (IF(AV)) | 1.5 A (S07B) – 0.7 A (S07M) |
| Thermal resistance junction‑to‑ambient (RthJA) | 180 K/W |
| Forward voltage (VF) at 1 A | 1.1 V |
| Reverse leakage current (IR) at 25 °C | 10 µA |
| Junction capacitance (Cj) at 4 V | 4 pF |
| Package type | JEDEC DO‑219AB (SMF®) |
The diodes are supplied in a JEDEC DO‑219AB (SMF) surface‑mount package.
Yes, the diodes are lead‑free and comply with RoHS 2002/95/EC and WEEE 2002/96/EC.
The typical thermal resistance is 180 K/W.
