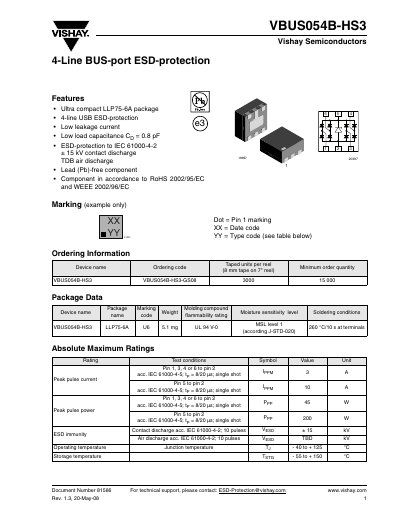

VBUS054B-HS3 is a 4-Line BUS-port ESD-protection from Vishay. It has an ultra compact LLP75-6A package, 4-line USB ESD-protection, low leakage current, low load capacitance CD = 0.8 pF. It meets IEC 61000-4-2 ± 15 kV contact discharge TDB air discharge standard, and is lead-free component, meets RoHS 2002/95/EC and WEEE 2002/96/EC standard.
The VBUS054B-HS3 is a four‑line USB ESD‑protection device offered in an ultra‑compact LLP75‑6A package. It provides low leakage current, low load capacitance (CD = 0.8 pF), and complies with IEC 61000‑4‑2 ±15 kV contact discharge specifications. The component is RoHS‑ and WEEE‑compliant and is intended for protecting high‑speed USB ports and other signal lines.
The datasheet includes ordering information, absolute maximum ratings, electrical characteristics, typical performance curves, application notes, and mechanical dimensions. It also contains Vishay’s environmental policy and legal disclaimer. All parameters must be validated for each customer application.
