WVC200 is a wireless network camera. It supports wireless connection, high-definition video transmission, remote control, recording playback and photo shooting.

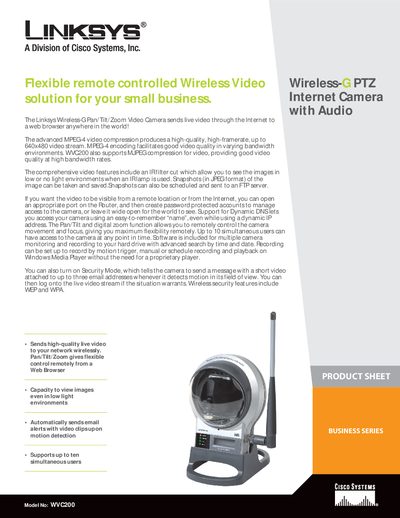

The Linksys WVC200 is a wireless PTZ (pan‑tilt‑zoom) internet camera with built‑in audio, supporting MPEG‑4 and MJPEG video compression. It offers remote control via a web browser, motion‑triggered email alerts, and up to ten simultaneous users.
This manual covers the camera’s features, package contents, minimum system requirements, detailed specifications, network and security configuration, and management utilities for monitoring and recording video streams.
| Video Resolution | 640 x 480, 320 x 240, 160 x 120 |
|---|---|
| Frame Rate | Up to 30 fps |
| Image Sensor | 1/5" CMOS |
| Focal Length | 500mm‑~ Infinity |
| Dimensions (WxHxD) | 1.26 x 7.83 x 6.89 inches |
| Weight | 1.01 lbs |
| Power Supply | 5DVC 2.5A Switching Power Supply |
| Audio Compression | G726 8 kHz 16 kbps |
| Operating Temperature | -32 °F ~ 113 °F (-0 °C ~ 45 °C) |
The camera can support up to ten simultaneous users.
The WVC200 supports dual codecs: MPEG‑4 and MJPEG.
The software requires Windows XP/2000/ME/98SE, a 1 GHz Pentium 4 or AMD Athlon CPU, 128 MB RAM, and a 32 MB AGP video adapter.
