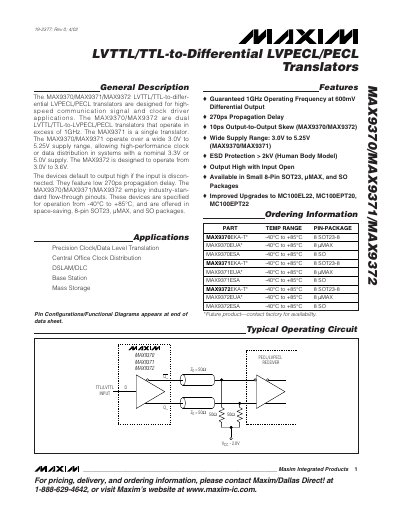

The MAX9370/MAX9371/MAX9372 LVTTL/TTL-to-Differential LVPECL/PECL Translators are high-performance clock/data level translation devices, which can be used in central office clock distribution, DSLAM/DLC base station and other scenes.
The MAX9370, MAX9371 and MAX9372 are LVTTL/TTL‑to‑differential LVPECL/PECL translators designed for high‑speed communication and clock‑driver applications. The MAX9370 and MAX9372 are dual‑channel devices, while the MAX9371 is a single‑channel part. They operate over a wide supply range and support frequencies above 1 GHz.
The devices feature low propagation delay, tight output‑to‑output skew, and are offered in compact 8‑pin SOT23, µMAX and SO packages. Electrical characteristics, absolute maximum ratings, pin descriptions and typical operating curves are provided for design reference.
| Maximum Operating Frequency | > 1 GHz |
|---|---|
| Propagation Delay | 270 ps |
| Supply Voltage Range (MAX9370/MAX9371) | 3.0 V to 5.25 V |
| Supply Voltage Range (MAX9372) | 3.0 V to 3.6 V |
| Output‑to‑Output Skew (MAX9370/MAX9372) | 10 ps |
The devices operate at frequencies greater than 1 GHz.
The MAX9370 can be powered from 3.0 V to 5.25 V.
They have a low propagation delay of 270 ps.
