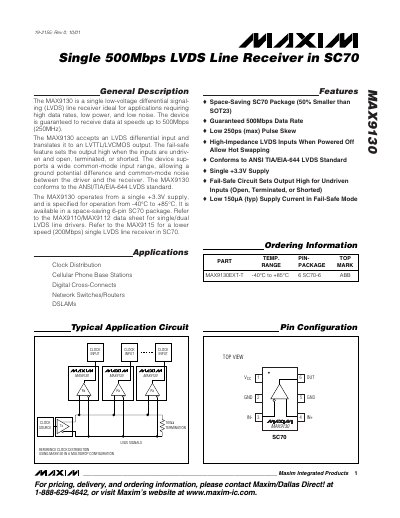

The MAX9130 is a single low-voltage differential signaling (LVDS) line receiver ideal for applications requiring high data rates, low power, and low noise. The device is guaranteed to receive data at speeds up to 500Mbps (250MHz). The MAX9130 accepts an LVDS differential input and translates it to an LVTTL/LVCMOS output. The fail-safe feature sets the output high when the inputs are undriven and open, terminated, or shorted. The device supports a wide common-mode input range, allowing a ground potential difference and common-mode noise between the driver and the receiver. The MAX9130 conforms to the ANSI/TIA/EIA-644 LVDS standard. The MAX9130 operates from a single +3.3V supply, and is specified for operation from -40°C to +85°C. It is available in a space-saving 6-pin SC70 package. Refer to the MAX9110/MAX9112 data sheet for single/dual LVDS line drivers. Refer to the MAX9115 for a lower speed (200Mbps) single LVDS line receiver in SC70.
The MAX9130 is a single low‑voltage differential signal (LVDS) line receiver designed for high‑speed data transmission, low power consumption, and low noise. It operates from a single +3.3 V supply, supports data rates up to 500 Mbps (250 MHz), and includes a fail‑safe circuit that forces the output high when inputs are undriven, open, terminated, or shorted.
The datasheet provides absolute maximum ratings, DC and AC electrical characteristics, pin descriptions, recommended board layout, termination practices, and typical application circuits. It also details supply current in fail‑safe mode (150 µA) and normal operation (7 mA), as well as propagation delay, rise/fall times, and recommended 100 Ω termination.
| Maximum Data Rate | 500 Mbps (250 MHz) |
|---|---|
| Supply Voltage | +3.3 V (range +3.0 V to +3.6 V) |
| Operating Temperature Range | -40 °C to +85 °C |
| Package | 6‑pin SC70 |
| Normal Supply Current | 7 mA |
| Typical Propagation Delay (high‑to‑low) | 1.8 ns |
| Rise Time (typical) | 0.5 ns |
