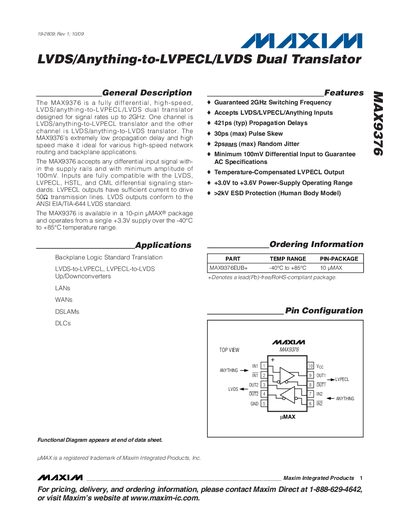

The MAX9376 is a high-speed LVDS/anything-to-LVPECL/LVDS dual translator from MAXIM that supports signal rates up to 2GHz. It features extremely low propagation delay and high speed, making it ideal for various high-speed network routing and backplane applications.
The MAX9376 is a fully differential, high‑speed LVDS/anything‑to‑LVPECL/LVDS dual translator designed for signal rates up to 2 GHz. One channel converts LVDS/anything to LVPECL and the other to LVDS, offering extremely low propagation delay and high speed for network routing and backplane applications.
The device operates from a single +3.3 V supply in a 10‑pin UMAX package and works over a temperature range of –40 °C to +85 °C. It accepts differential inputs as low as 100 mV and provides LVPECL outputs capable of driving 50 Ω transmission lines and LVDS outputs that conform to the ANSI EIA/TIA‑644 standard.
| Maximum signaling rate | 2 GHz |
|---|---|
| Typical propagation delay | 421 ps |
| Maximum pulse skew | 30 ps |
| Maximum random jitter | 2 ps RMS |
| Supply voltage | +3.3 V (typ), +3.0 V to +3.6 V (range) |
| Operating temperature range | -40 °C to +85 °C |
| Package | 10‑pin UMAX |
| Typical LVDS output current | 3.5 mA |
The MAX9376 supports signal rates up to 2 GHz.
It operates from a single +3.3 V supply, with a permissible range of +3.0 V to +3.6 V.
The device is available in a 10‑pin UMAX package.
Typical propagation delay is 421 ps.
