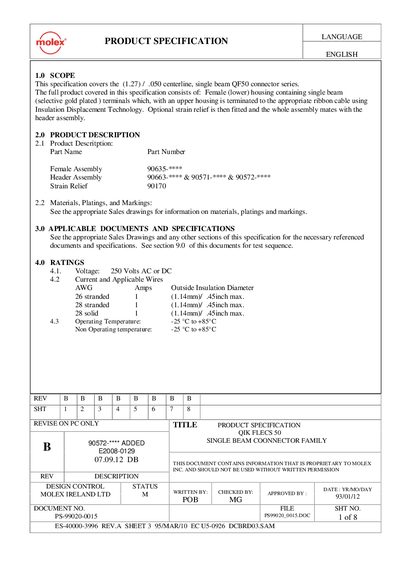

This document introduces the product features of the QF50 connector series, including product composition, materials, platings, and markings.
The QIK FLECS 50 series is a single‑beam, 0.050 in (1.27 mm) centerline connector that consists of a female lower housing with gold‑plated terminals, a header assembly, and optional strain‑relief. The connector is terminated to ribbon cable using insulation‑displacement technology.
The document provides electrical ratings (250 V AC/DC, 20 mΩ contact resistance), mechanical performance data, environmental test results, and detailed test sequences. It also lists packaging requirements, gauge fixtures, and conductor specifications for the assemblies.
| Voltage rating | 250 V AC or DC |
|---|---|
| Operating temperature | -25 °C to +85 °C |
| Insulation resistance (minimum) | 1000 MΩ |
| AWG (strand size) | 26 AWG stranded 1.14 mm |
| Current rating | 142 A |
| Conductor material | Stranded tinned copper |
It is rated for up to 250 V AC or DC.
The connector can operate from –25 °C up to +85 °C.
