This product is a Category 5e Patch Cord produced by Molex Premise Networks. It supports 10BaseT, 100BaseT, ATM, 1000BaseT protocols and can reach up to 350MHz frequencies. The product is constructed of 4-pair 24 AWG cable and has modular RJ45 plugs at both ends with anti-snag strain relief boots.
The Category 5e Patch Cord from Molex is a 4‑pair 24 AWG cable with RJ45 plugs and color‑matched strain‑relief boots, suitable for 10BaseT, 100BaseT, ATM, 1000BaseT and other high‑frequency networking applications. The cable is performance‑tested to 350 MHz and meets UL and CSA approvals.

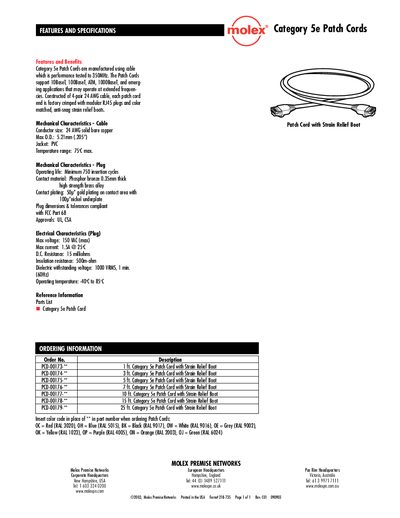

The document lists mechanical and electrical characteristics, including conductor size, outer diameter, temperature limits, contact materials and plating, as well as ordering part numbers for lengths from 1 ft to 25 ft with color‑code options.
| Conductor size | 24 AWG solid bare copper |
|---|---|
| Maximum outer diameter | 5.21 mm (0.205 in) |
| Jacket material | PVC |
| Maximum temperature range | 75 °C max |
| Operating life (plug) | Minimum 750 insertion cycles |
| Contact material | Phosphor bronze 0.35 mm thick high strength brass alloy |
| Contact plating | 50 µ" gold plating with 100 µ" nickel underplate |
| Maximum voltage | 150 VAC |
| Maximum current | 1.54 A @ 25 °C |
| DC resistance | 15 mΩ |
| Insulation resistance | 500 MΩ |
| Dielectric withstanding voltage | 1000 V RMS, 1 min (60 Hz) |
| Operating temperature range | -40 °C to 85 °C |
| Approvals | UL, CSA |
Lengths from 1 ft to 25 ft are offered, with part numbers PCD‑00173‑**, PCD‑00174‑**, PCD‑00175‑**, PCD‑00176‑**, PCD‑00177‑**, PCD‑00178‑**, and PCD‑00179‑**, where ** is replaced by the color code.
The plug is rated for a maximum voltage of 150 VAC.
The patch cord is approved by UL and CSA.
