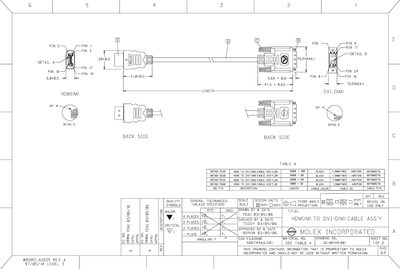

This leaflet details Molex HDMI‑to‑DVI‑D cable assemblies, listing part numbers, lengths, colors, wire gauge and other mechanical data. It includes tables for each cable variant such as 88768‑3510 (2 m, black, AWG#28) and 88768‑3520 (3 m, black, AWG#28).
The document also shows general tolerances, drawing revisions, and approval signatures, ensuring the information is suitable for engineering and procurement purposes.
| Cable length (3 m) | 3 m |
|---|---|
| Cable color | BLACK |
