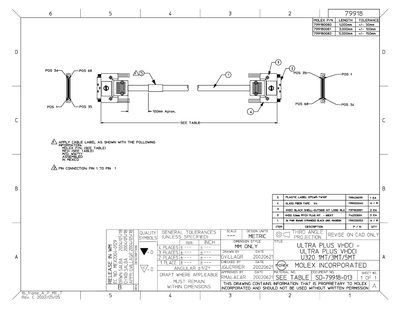

This datasheet lists the part numbers, physical dimensions, tolerances and pin connections for the Molex SD-79918-0 connector series. It includes length specifications for each part number and the associated tolerance values.
The document also shows labeling information, material references, assembly location (Mexico) and revision data, ensuring proper identification and use of the connector components.
| Length (part 7929180080) | 1000 mm |
|---|---|
| Length (part 799180081) | 3.000 mm |
| Length (part 799180082) | 5.000 mm |
| Pin 1 connection | Top pin 1 |
| Assembly location | Mexico |
| Document revision | Rev. C 2002705/05 |
The length is 3.000 mm.
It is assembled in Mexico.
The revision code is Rev. C 2002705/05.
