The LC connector is designed for smaller and easier-to-use fiber optic connectivity, without sacrificing performance

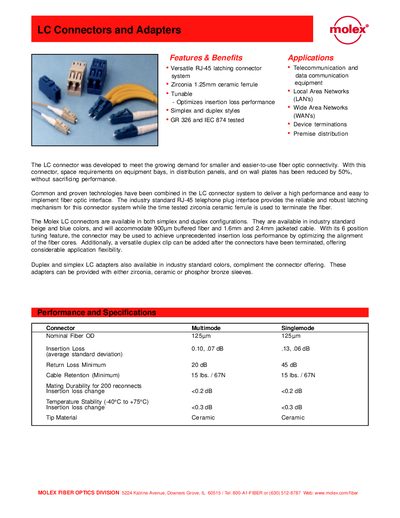

The handbook describes Molex LC fiber‑optic connectors and adapters, including simplex, duplex and low‑profile versions. It highlights features such as RJ‑45 latching, zirconia ceramic ferrules, and a 6‑position tuning feature for optimized insertion loss.
Technical data such as insertion loss, return loss, cable retention, durability, and temperature stability are listed, together with detailed dimensions, housing colors, and order numbers for each part number.
| Insertion Loss (singlemode) | 0.10 dB (average) |
|---|---|
| Return Loss Minimum (multimode) | 20 dB |
| Cable Retention (minimum) | 15 lbs. / 67 N |
| Mating Durability | 200 reconnects |
| Tip Material | Ceramic |
The minimum return loss is 20 dB for multimode and 45 dB for single‑mode versions.
The connector is rated for 200 reconnections.
The recommended panel thickness is 2 mm.
