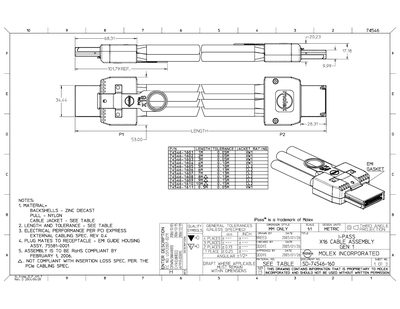

This selection guide lists the Molex SD-74546-160 connector family, including part numbers, length options, material specifications and electrical performance for PCI‑Express applications. It also provides dimensional data such as cable gauge, cable diameter and minimum outer radius.
The document includes tables of part numbers (e.g., 74546‑1602, 74546‑1603), material details (zinc die‑cast backshells, nylon pull‑ins), and mechanical dimensions to help designers choose the appropriate variant for their system.
| Length | 34.44 |
|---|---|
| Backshell material | Zinc diecast |
| Pull material | Nylon |
| Cable gauge | 24, 26, 28 |
| Cable diameter | 10.4, 9.3, 8.4 |
| Minimum outer radius | 46.9, 41.7, 37.7 |
| Faceplate to quarter radius | 102.2, 97.0, 193.0 |
The backshells are made of zinc die‑cast.
The pull‑in component is made of nylon.
The guide lists cable gauges 24, 26 and 28.
