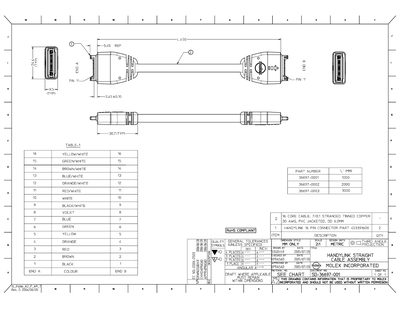

This one‑page document provides the detailed part list and wiring color code for the Molex SD-36697-001 cable assembly. It includes a table of pin numbers, wire colors, and associated part numbers.
Technical data such as core cable construction, wire gauge, and jacket material are also listed, along with general tolerances and approval stamps for the drawing.
| Number of pins | 16 |
|---|---|
| Core cable material | Stranded tinned copper |
| Cable jacket material | PVC |
| Wire gauge | 30 AWG |
The part number for the yellow/white wire is 36697-0001.
The core cable is made of stranded tinned copper.
The cable uses 30 AWG wire.
The connector has 16 pins.
