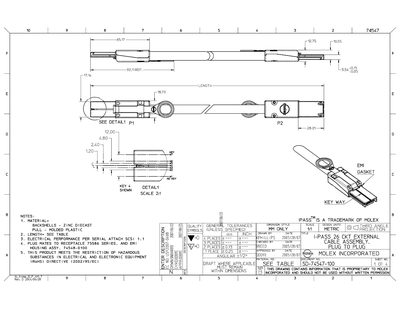

The SD-74547-100 is an X4 SAS cable assembly offered by Molex. It is supplied in full‑molded plastic with various gauge and length options and includes keying identifiers for proper routing.
The document lists material, dimensions, electrical performance, and compliance information such as RoHS certification, providing the data needed for designers and integrators.
| Cable type | X4 SAS cable assembly |
|---|---|
| Gauge | 28 AWG (available 24‑28 AWG) |
| Length options | 1 m, 2 m, 3 m, 4 m, 5 m, 6 m, 10 m |
| Keying identifier | X4 SAS |
The assemblies are offered in 24 AWG, 25 AWG, 26 AWG, and 28 AWG.
The keying identifier is X4 SAS.
