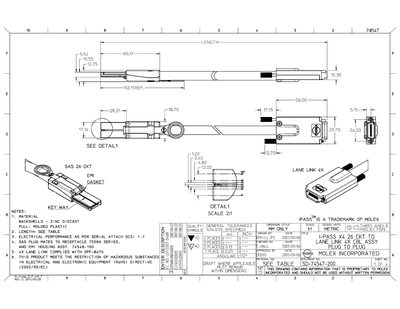

This selection guide from Molex provides detailed information for the SD‑74547‑200 family of 4‑lane link cable assemblies. It includes part numbers, mechanical dimensions, keying identifiers and electrical performance notes for both SAS and SATA variants.
The document also notes material construction, RoHS compliance and provides a pin‑out diagram for the connectors. It is intended for engineers selecting the appropriate cable assembly for their system designs.
| Backshell material | Zinc diecast |
|---|---|
| Electrical performance | Per serial attach |
The keying identifier column shows the mechanical keying code for each part number to ensure correct mating.
Yes, all dimensions are shown in millimetres, with a note that measurements are metric only.
