76650-0151 is an industrial USB connector produced by Molex. It features dustproof, waterproof and corrosion-resistant features, and is suitable for harsh commercial and industrial environments.

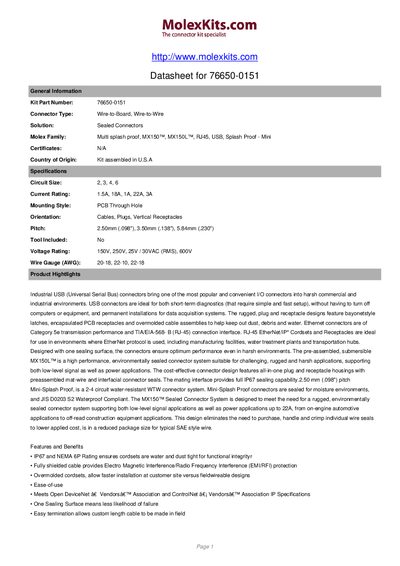

The 76650-0151 kit is a sealed, multi‑circuit connector system from Molex, offering wire‑to‑board and wire‑to‑wire solutions with IP67/NEMA 6P protection. It includes USB and RJ‑45 options, bayonet‑style latches, and over‑molded cable assemblies for harsh industrial environments.
The kit is suited for factory automation, industrial computers, printers, robotics, medical devices, and many other applications. A detailed bill of materials lists each plug, receptacle, terminal and tool required for assembly.
| Circuit Size | 2, 3, 4, 6 |
|---|---|
| Current Rating | 1.5A, 18A, 1A, 22A, 3A |
| Mounting Style | PCB Through Hole |
| Orientation | Cables, Plugs, Vertical Receptacles |
| Pitch | 2.50mm, 3.50mm, 5.84mm |
| Voltage Rating | 150V, 250V, 25V/30VAC, 600V |
| Wire Gauge (AWG) | 20‑18, 22‑10, 22‑18 |
| Tool Included | No |
The kit is rated IP67 and NEMA 6P, providing water and dust tight protection.
