Category 6 Patch Cords are constructed of 4-pair 24 AWG cable and each patch cord end is assembled with modular RJ-45 plugs and color matched, anti-snag strain relief boots.

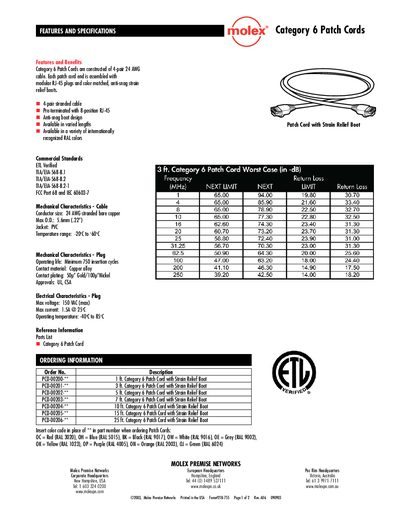

The Molex Category 6 Patch Cords are 4‑pair 24 AWG stranded copper cables terminated with RJ‑45 plugs and color‑matched anti‑snag strain‑relief boots. They meet commercial standards such as ETL verification and TIA/EIA‑568 specifications.
Technical details include mechanical dimensions, temperature ranges, plug life, contact materials, and electrical ratings. Ordering information provides part numbers for various lengths and color codes based on RAL standards.
| Conductor size | 24 AWG stranded bare copper |
|---|---|
| Maximum outer diameter | 5.6 mm (0.22 in) |
| Jacket material | PVC |
| Cable temperature range | -20 °C to +60 °C |
| Plug operating life | Minimum 750 insertion cycles |
| Contact material | Copper alloy |
| Contact plating | 50 µ" Gold / 100 µ" Nickel |
| Plug maximum voltage | 150 VAC (max) |
| Maximum current | 1.5 A @ 25 °C |
| Operating temperature (plug) | -40 °C to 85 °C |
Insert the two‑letter color code in place of **: OC = Red, OH = Blue, BK = Black, OW = White, OE = Grey, OK = Yellow, OP = Purple, ON = Orange, OJ = Green.
They are ETL verified and comply with TIA/EIA‑568‑B.1, B.2, B.2‑1, FCC Part 68, IEC 60603‑7, and have UL and CSA approvals.
