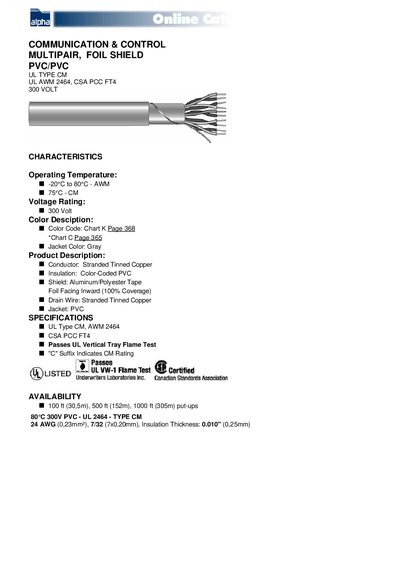

This document is about the COMMUNICATION & CONTROL MULTIPAIR, FOIL SHIELD PVC/PVC UL TYPE CM UL AWM 2464, CSA PCC FT4 300 VOLT product, including product features, characteristics, brand, model, etc.
The Alpha Multipaired Foil Shield PVC/PVC wire is designed for communication and control applications. It features a stranded tinned copper conductor, aluminum/polyester foil shield with 100% coverage, and a gray PVC jacket. The wire meets UL Type CM, AWM 2464 and CSA PCC FT4 standards and is rated for 300 V operation.
The product is available in lengths of 100 ft, 500 ft, and 1000 ft, with AWG sizes ranging from 24 AWG to 50 AWG. Detailed part numbers and dimensions are listed, and the wire passes UL Vertical Tray Flame Test and UL VW‑1 flame test certifications.
| Operating Temperature | -20°C to 80°C |
|---|---|
| Voltage Rating | 300 Volt |
| UL Type | CM, AWM 2464 |
| CSA Certification | PCC FT4 |
| Conductor Material | Stranded Tinned Copper |
| Shield Material | Aluminum/Polyester Tape |
| Jacket Color | Gray |
The wire is rated for 300 Volt.
It can operate from –20 °C up to 80 °C.
It is UL Type CM, AWM 2464 and passes the UL Vertical Tray Flame Test.
The jacket color is gray.
