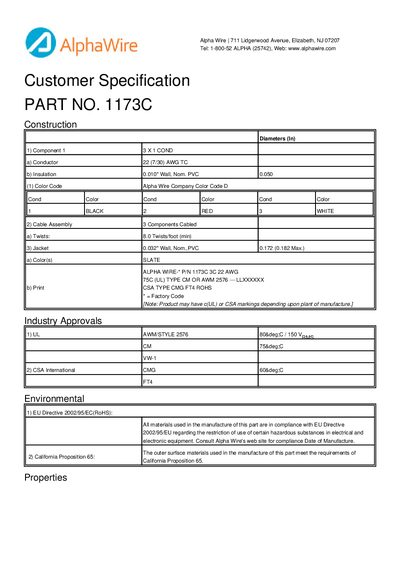

The Alpha Wire 1173C part is a 22 AWG (7/30) copper conductor with PVC insulation and a slate‑colored jacket. It is supplied in various packaging lengths (100 ft, 500 ft, 1000 ft) and includes color‑coded conductors (black, red, white) for easy identification.
Key specifications include a temperature operating range of –20 °C to 80 °C, a voltage rating of 300 V, capacitance of 33 pF/ft at 1 kHz, inductance of 0.18 µH/ft, and a maximum pull tension of 16.5 lb. The product meets UL, CSA, and EU RoHS compliance standards.
| Voltage Rating | 300 V |
|---|---|
| Capacitance | 33 pF/ft @1 kHz |
| Inductance | 0.18 µH/ft |
| Maximum Pull Tension | 16.5 lb |
The wire is rated for 300 V.
Lead is limited to 0.1 % by weight (1000 ppm).
