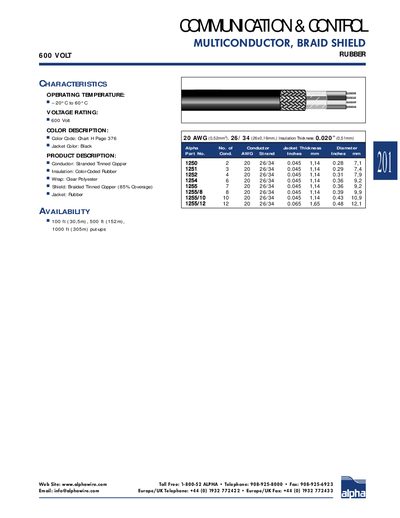

This data table provides communication & control multiconductor, braid shield rubber 201 20 awg (0,52mm2), 26/34 (26x0,16mm) insulation thickness is 0.020”(0,51mm) data.
The Alpha 600 V multiconductor braid shield rubber cable is a stranded tinned‑copper conductor with a color‑coated rubber insulation and a black outer jacket. It is rated for operation from –20 °C to 60 °C and can handle up to 600 V.
The cable is available in 100 ft, 500 ft and 1000 ft lengths. For more information, contact Alpha Wire via their website, toll‑free number, or email.
| Operating Temperature | -20°C to 60°C |
|---|---|
| Voltage Rating | 600 Volt |
| Insulation Material | Color‑Coated Rubber |
| Jacket Color | Black |
| Shield Type | Braided Tinned Copper (85% Coverage) |
| Available Lengths | 100 ft, 500 ft, 1000 ft |
It can operate from –20 °C up to 60 °C.
The cable is rated for 600 Volt.
You can reach Alpha via their website www.alphawire.com, toll‑free 1‑800‑52‑ALPHA, telephone 908‑925‑8000, or email [email protected].
