This document contains data information of 39 Lexell's cable products, including cable wire diameter (AWG), wire diameter (mm2), outer diameter (in), outer diameter (mm), model, conductor number, wire diameter thickness (in), wire diameter thickness (mm), wire diameter (in), wire diameter (mm), rated voltage (V).

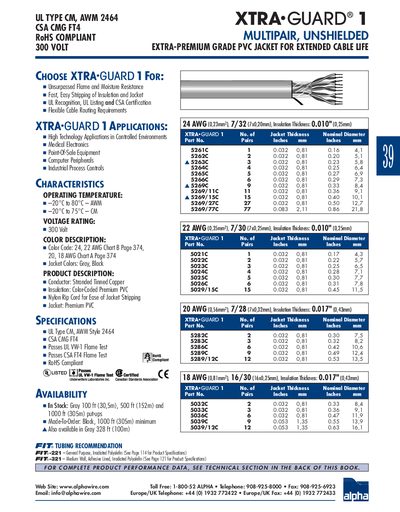

The AlphaWire UL TYPE CM AWM 2464 cable is a premium‑grade, extra‑insulated PVC cable designed for high‑technology applications in controlled environments such as medical electronics, computer peripherals, and industrial process controls. It offers UL Type CM and CSA CMG FT4 certifications, RoHS compliance, and a 300 V voltage rating.
The cable is available in gray and black jackets, with a stranded tinned copper conductor and color‑coded PVC insulation. It operates from –20 °C to 80 °C, and various jacket thicknesses and diameters are listed for different AWG sizes. Availability ranges from standard stock lengths to made‑to‑order rolls.
| Voltage rating | 300 Volt |
|---|---|
| Conductor material | Stranded Tinned Copper |
| Insulation type | Color‑Coded Premium PVC |
| Jacket colors | Gray, Black |
The cable is rated for 300 Volt.
Gray and Black jackets are offered.
