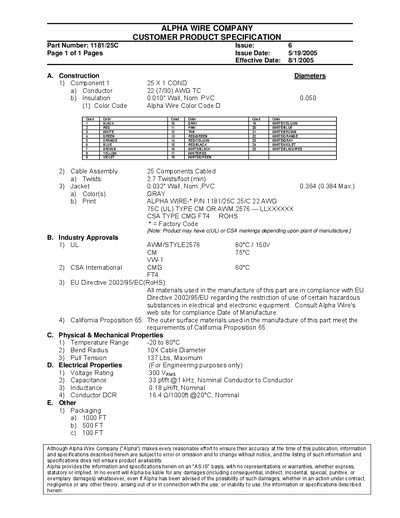

This document provides the full specification for Alpha Wire part number 1181/25C. It includes construction details such as conductor size, insulation thickness, jacket dimensions, and color codes, as well as physical and mechanical properties like temperature range, bend radius, and pull tension.
Additional sections cover industry approvals (UL, CSA, EU RoHS, California Proposition 65), electrical characteristics (voltage rating, capacitance, inductance, conductor resistance), and packaging options. The sheet ends with a disclaimer about the accuracy and availability of the information.
| Temperature Range | -20 to 80°C |
|---|---|
| Bend Radius | 10× Cable Diameter |
| Pull Tension (Maximum) | 137 Lbs |
| Voltage Rating | 300 Vams |
| Capacitance | 33 pF/ft @1 kHz |
| Inductance | 0.18 µH/ft |
| Conductor DCR | 16.4 Ω·mil/ft @20°C |
| Conductor Size | 22 AWG (7/30) |
| Insulation Thickness | 0.010" Wall, Nom. PVC 0.050 |
| Jacket Thickness | 0.032" Wall, Nom., PVC 0.364 (0.384 Max.) |
The part is rated for temperatures from –20 °C to 80 °C.
It is rated for 300 Vams.
The wire is available in 100 ft, 500 ft, and 1000 ft packages.
