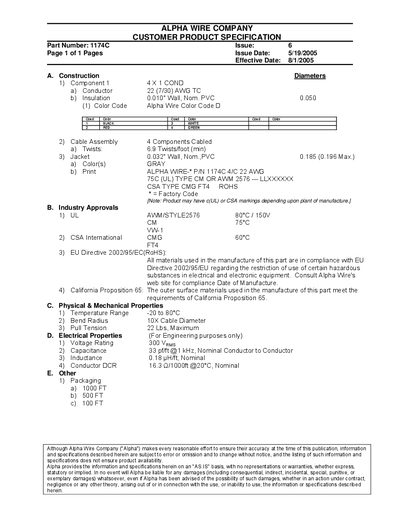

The Alpha Wire 1174C specification outlines the construction of the 4×1 COND component, including conductor size (22 AWG), insulation thickness, and jacket material. It also provides color coding, twist count, and packaging options.
Industry approvals such as UL, CSA, and EU RoHS compliance are listed, along with physical and mechanical limits (temperature range –20 °C to 80 °C, bend radius, pull tension) and electrical characteristics like voltage rating, capacitance, inductance, and conductor resistance.
| Conductor size | 22 AWG |
|---|---|
| Insulation wall thickness | 0.010" |
| Jacket wall thickness | 0.032" |
| Temperature range | -20 °C to 80 °C |
| Voltage rating | 300 Vrms |
| Capacitance | 33 pF/ft @1 kHz |
| Inductance | 0.18 µH/ft |
| Conductor DCR | 16.3 Ω·mil/ft @20 °C |
| Pull tension (max) | 22 lbs |
| Bend radius | 10 × cable diameter |
The voltage rating is 300 Vrms.
The wire can operate from –20 °C to 80 °C.
Packaging is offered in 100 ft, 500 ft, and 1000 ft lengths.
