Teflon® Tubing TFT-200, 250 149 is a Teflon tube with excellent heat and chemical resistance. It can be used for wire harnesses and high temperature component covering. Product features are as follows: Operating temperature range is -65°C to 260°C, color is transparent, physical properties include tensile strength of 2500 psi (176 kg/cm2), maximum elongation of 200%, specific gravity of 2.2, flammability of self-extinguishing, chemical properties include non-corrosive, no mold growth, water absorption of 0.01%, and electrical properties include dielectric strength of 800V/mil (315 kV/cm) and volume resistivity of 1018 ohm-cm.

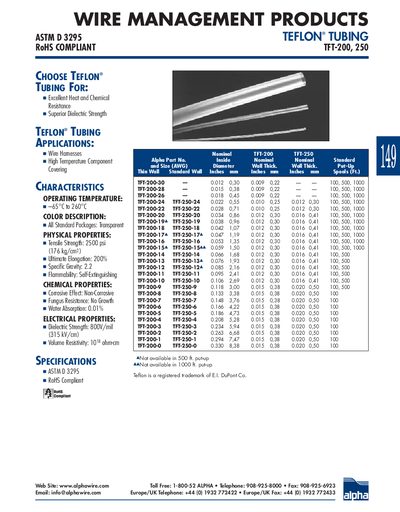

The Alpha TFT-200 and TFT-250 Teflon tubing series provides high‑temperature and chemical resistance for wire harness applications. The sheet details nominal sizes, wall thicknesses, and standard spool lengths.
Key specifications include operating temperature, dielectric strength, tensile strength, specific gravity, flammability, water absorption, and volume resistivity, all meeting ASTM D‑3295 and RoHS compliance.
| Tensile Strength | 2500 psi |
|---|---|
| Specific Gravity | 2.2 |
| Flammability | Self Extinguishing |
| Water Absorption | 0.01 % |
| Volume Resistivity | 10^18 ohm·cm |
Yes, the product is RoHS compliant.
