This document describes the product specifications and information provided by Alpha Wire Company, including details on construction diameters, cable assembly, shielding, and jacketing.

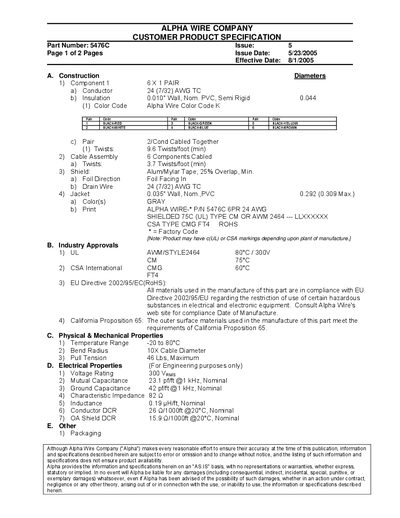

The Alpha Wire 5476C Customer Product Specification provides detailed information on the construction, materials, and color coding of the 6‑pair, 24 AWG wire. It lists component dimensions, insulation type, shielding, and jacket details, as well as the available packaging lengths.
The document also includes industry approvals (UL, CSA, RoHS, California Proposition 65) and key physical and electrical properties such as temperature range, voltage rating, characteristic impedance, and inductance. Packaging options range from 100 ft to 1000 ft and bulk made‑to‑order.
| Conductor size | 24 (7/82) AWG TC |
|---|---|
| Insulation | 0.010" Wall, Nom. PVC, Semi‑Rigid 0.044 |
| Temperature range | -20 to 80 °C |
| Voltage rating | 300 Vrms |
| Characteristic impedance | 82 Ω |
| Inductance | 0.19 µH/ft |
It is approved to UL AWM/STYLE2464 80 °C / 300 V CM 75 °C and CSA International CMG 60 °C FT4.
The wire is rated for operation from –20 °C to 80 °C.
Packaging is available in 100 ft, 500 ft, 1000 ft, and bulk made‑to‑order.
