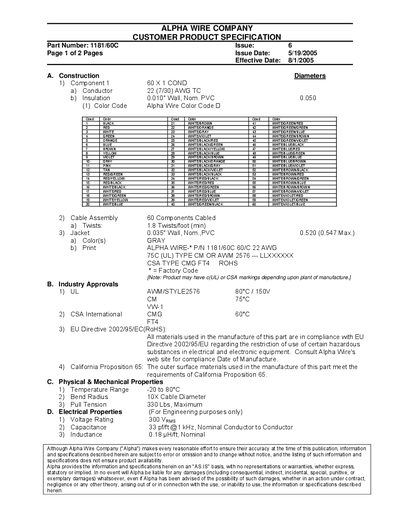

This specification sheet for Alpha Wire part number 1181/60C provides detailed information on the wire construction, color codes, dimensions, and material composition. It lists the conductor size, insulation thickness, jacket specifications, and available cable assembly options.
The document also includes mechanical and electrical performance data such as temperature range, bend radius, pull tension, voltage rating, capacitance, and inductance, along with industry approvals (UL, CSA, RoHS, California Proposition 65) and packaging options.
| Temperature Range | -20 to 80°C |
|---|---|
| Bend Radius | 10X Cable Diameter |
| Pull Tension | 330 Lbs, Maximum |
| Voltage Rating | 300 Vrms |
| Capacitance | 33 pF/ft @1 kHz |
| Inductance | 0.18 µH/ft |
| Conductor Size | 22 AWG |
| Insulation Thickness | 0.010" Wall, Nom. PVC 0.050 |
| Jacket Thickness | 0.035" Wall, Nom., PVC 0.520 (0.547 Max.) |
The voltage rating is 300 Vrms.
It can operate from –20 °C to 80 °C.
