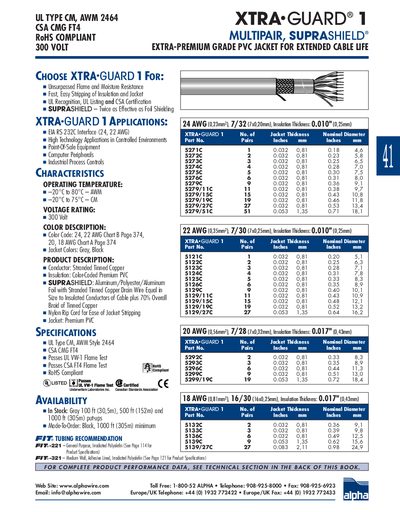

This file provides the specification information of the cable, including wire diameter, insulation thickness, outer diameter, number of pairs, model number, etc.
The AWM 2464 XTRA Guard 1 cable from Alpha is a premium‑grade PVC‑jacketed cable designed for high‑temperature and high‑flame‑resistance applications. It meets UL Type CM, CSA CMG FT4 and RoHS standards, offering reliable performance in controlled environments.
Key features include SUPRASHIELD aluminum/polyester/aluminum foil shielding, stranded tinned copper conductors, and color‑coded insulation. The product is available in various AWG sizes with detailed specifications for voltage rating, operating temperature, and flame‑test compliance.
| Voltage Rating | 300 V |
|---|---|
| Operating Temperature | -20°C to 80°C |
| Flame Test (UL) | Passes UL VW-1 |
| Flame Test (CSA) | Passes CSA FT4 |
| Conductor | Stranded Tinned Copper |
| Shielding | SUPRASHIELD aluminum/polyester/aluminum foil |
It is UL Type CM certified, CSA CMG FT4 certified, and RoHS compliant.
The cable is rated for 300 volts.
The cable can operate from about –20 °C up to 80 °C.
