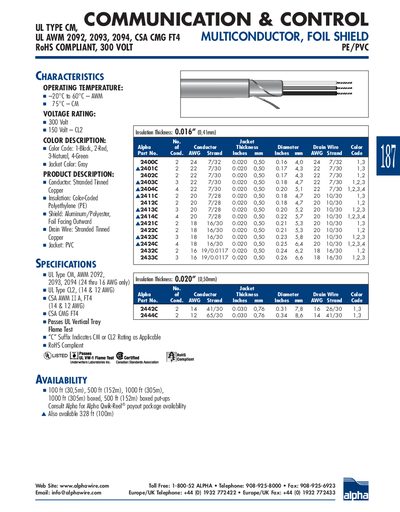

COMMUNICATION & CONTROL MULTICONDUCTOR, FOIL SHIELD PE/PVC 187 is a communication and control multiconductor cable with aluminum/polyester shielding layer, working temperature is –20°C to 60°C, rated voltage is 300 volt.
The Alpha UL Type CM and UL AWM 2092‑2094 cable series are designed for communication and control applications. They feature foil‑shielded, multiconductor construction with a polyethylene (PE) or PVC jacket and are RoHS compliant.
Key specifications include an operating temperature range of –20 °C to 60 °C (AWM up to 75 °C), a voltage rating of 300 V, and various insulation thicknesses. The cables are available in standard lengths of 100 ft, 500 ft, 1 000 ft, and custom Qwik‑Reel® packages.
| Operating Temperature | -20 °C to 60 °C |
|---|---|
| Voltage Rating | 300 V |
| Insulation Thickness | 0.016 in (0.41 mm) |
| Conductor Type | Stranded Tinned |
| Shield Material | Aluminum / Polyester |
The cable is rated for 300 V.
Yes, the cable meets RoHS compliance.
It operates from –20 °C to 60 °C (AWM versions up to 75 °C).
