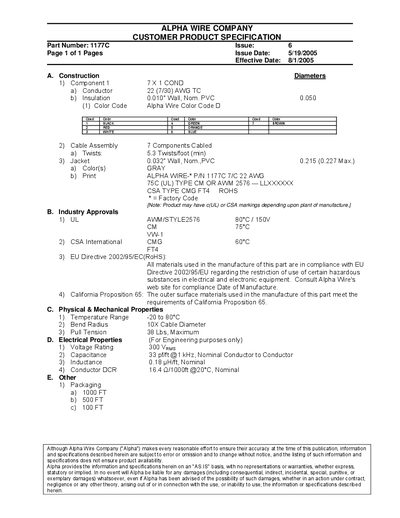

The Alpha Wire 1177C Customer Product Specification provides detailed information on the construction of the wire, including conductor size, insulation thickness, jacket material, and color coding. It also lists the required twists per foot and packaging options.
Industry approvals such as UL, CSA, and EU RoHS compliance are documented, along with key electrical properties (voltage rating, capacitance, inductance) and mechanical limits (temperature range, pull tension). The sheet includes notes on compliance with California Proposition 65 and a disclaimer regarding accuracy.
| Conductor size | 22 AWG |
|---|---|
| Insulation wall thickness | 0.010" |
| Jacket wall thickness | 0.032" |
| Jacket color | Gray |
| Twists per foot | 5.3 twists/ft (min) |
| Voltage rating | 300 Vrms |
| Capacitance | 0.18 µH/ft (nominal) |
| Inductance | 33 pF/ft @1 kHz (nominal) |
| Maximum pull tension | 38 lbs |
The wire is rated for 300 Vrms.
