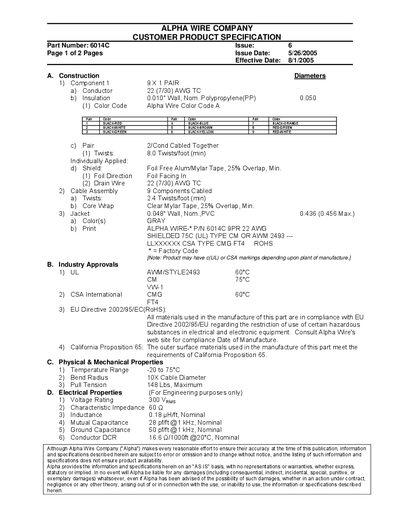

The Alpha Wire 6014C Customer Product Specification provides detailed information on the construction of the cable, including conductor size, insulation material, color code, shielding and jacket details. It also lists packaging options and legal disclaimer statements.
Key sections cover industry approvals (UL, CSA, RoHS, Proposition 65), physical and mechanical properties such as temperature range and pull tension, and electrical characteristics like voltage rating, impedance, inductance and capacitance. The document is intended for engineering reference and product selection.
| Temperature Range | -20 to 75°C |
|---|---|
| Bend Radius | 10× Cable Diameter |
| Pull Tension (Maximum) | 148 Lbs |
| Voltage Rating | 300 Vrms |
| Characteristic Impedance | 60 Ω |
| Inductance (Nominal) | 0.18 µH/ft |
| Mutual Capacitance (Nominal) | 28 pF/ft @1 kHz |
| Ground Capacitance (Nominal) | 50 pF/ft @1 kHz |
| Conductor DCR (Nominal) | 16.6 Ω·mil/ft @20°C |
| Shield DC Resistance (Nominal) | 14.4 Ω/1000ft @20°C |
The 6014C wire is rated for temperatures from -20 °C to 75 °C.
It is approved by UL (AWM/STYLE2493, 60 °C, CM 75 °C, VW‑1), CSA International (CMG 60 °C, FT4), complies with EU RoHS, and meets California Proposition 65 requirements.
The wire has a voltage rating of 300 Vrms.
Packaging is available in 100 ft, 500 ft, and 1000 ft lengths.
