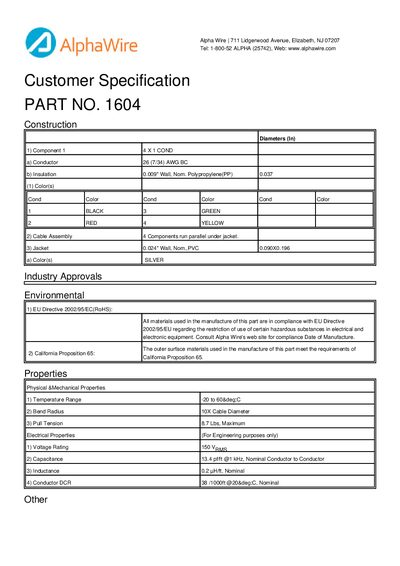

The Customer Specification for Alpha Wire part number 1604 describes the construction of the wire, including conductor size (26 AWG), insulation material (polypropylene), jacket material (PVC), and available color codes. It also lists the packaging options such as 1000‑ft and 328‑ft boxes.
The document provides key physical and electrical properties—temperature range –20 °C to 60 °C, bend radius 10 × cable diameter, pull tension 8.7 lb max, voltage rating 150 Voe, capacitance 13.4 pF/ft at 1 kHz, inductance 0.2 µH/ft, and conductor DCR 38 Ω/1000 ft at 20 °C. It also includes environmental approvals (EU RoHS, California Proposition 65) and a RoHS Certificate of Compliance.
| Bend Radius | 10 × cable diameter |
|---|---|
| Pull Tension | 8.7 lb max |
| Voltage Rating | 150 Voe |
| Capacitance | 13.4 pF/ft @1 kHz |
| Inductance | 0.2 µH/ft |
| Jacket Wall Thickness | 0.024 in (PVC) |
The voltage rating is 150 Voe.
Lead is limited to 0.1 % by weight (1000 ppm).
The maximum pull tension is 8.7 lb.
