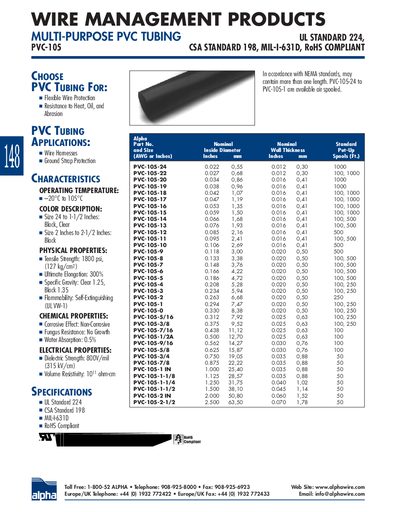

PVC-105 is multi-purpose PVC tubing that features resistance to heat, oil, and abrasion. It is suitable for wire harnesses and ground strap protection. It is compliant with UL Standard 224, CSA Standard 198, MIL-I-631D and RoHS standards.
PVC‑105 is a multi‑purpose PVC tubing designed for flexible wire protection, resistance to heat, oil and abrasion, and ground‑strap protection. It is offered in a range of sizes from 0.022 to 0.330 inches (ID) and can be supplied in air‑spooled lengths.
The tubing complies with UL Standard 224, CSA Standard 198, MIL‑I‑631D and is RoHS compliant. Key performance data include an operating temperature range of –20 °C to 105 °C, tensile strength of 1800 psi, dielectric strength of 800 V/in, self‑extinguishing flammability (UL V‑0) and color options of black or clear.
| Operating Temperature | -20 °C to 105 °C |
|---|---|
| Tensile Strength | 1800 psi |
| Dielectric Strength | 800 V/in |
| Flammability | Self‑Extinguishing (UL V‑0) |
| Color Options | Black, Clear |
PVC‑105 can be used from –20 °C up to 105 °C.
Yes, the product is RoHS compliant.
