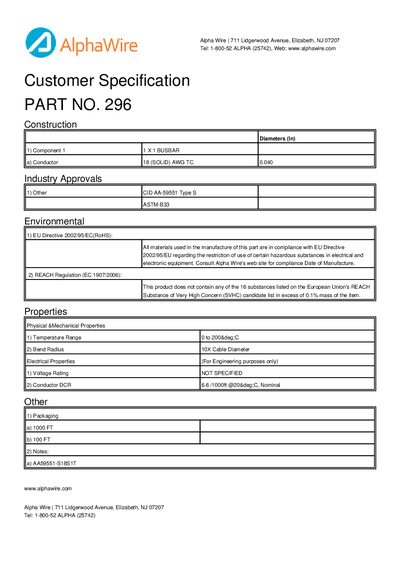

This Customer Specification provides detailed information for Alpha Wire part number 296, including construction details, industry approvals, and compliance with environmental regulations such as RoHS and REACH. It is intended for engineers and purchasers needing technical data for design and compliance verification.
Key technical data include the conductor size (18 solid AWG TC 0.040), temperature range (0 to 200 °C), bend radius (10 × cable diameter), and electrical properties such as a DCR of 6.6 Ω/1000 ft at 20 °C. The document also lists RoHS substance limits and packaging options.
| Conductor size | 18 solid AWG TC 0.040 |
|---|---|
| Bend radius | 10 × cable diameter |
| Voltage rating | Not specified |
| Lead content (RoHS) | 0.1 % by weight (1000 ppm) |
| Mercury content (RoHS) | 0.1 % by weight (1000 ppm) |
| Cadmium content (RoHS) | 0.01 % by weight (100 ppm) |
| Hexavalent Chromium content (RoHS) | 0.1 % by weight (1000 ppm) |
| Packaging length | 1000 ft or 100 ft |
The conductor is 18 solid AWG TC 0.040.
