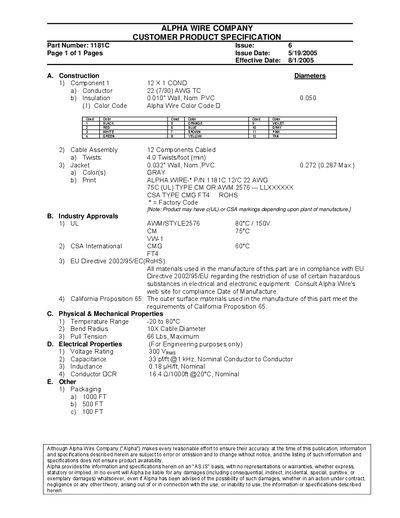

This document is a specification of Alpha Wire Company's product. It describes the construction, diameters, color code, and industry approvals of the 1181C model.
The Alpha Wire 1181C product specification provides detailed construction information, including conductor size, insulation thickness, and color coding. It also lists mechanical properties such as temperature range, bend radius, and pull tension.
Industry approvals are noted (UL, CSA, EU RoHS, California Proposition 65), and electrical characteristics like voltage rating, capacitance, inductance, and conductor DCR are given. Packaging options are available in 1000 ft, 500 ft, and 100 ft lengths.
| Temperature Range | -20 to 80°C |
|---|---|
| Bend Radius | 10× Cable Diameter |
| Pull Tension | 66 Lbs (Maximum) |
| Voltage Rating | 300 Vrms |
| Capacitance | 33 pF/ft @1 kHz (Nominal) |
| Inductance | 0.18 µH/ft (Nominal) |
| Conductor DCR | 16.4 Ω·m/ft @20°C (Nominal) |
| Packaging Lengths | 1000 ft, 500 ft, 100 ft |
It complies with UL AWM/STYLE2576, CSA TYPE CMG FT4, the EU RoHS directive, and California Proposition 65.
The wire is offered in 1000 ft, 500 ft, and 100 ft packaging lengths.
The product is rated for operation from –20 °C to 80 °C.
