TFE Teflon® insulated hookup wire is available in various gauges, including single and stranded wire, for a variety of applications.

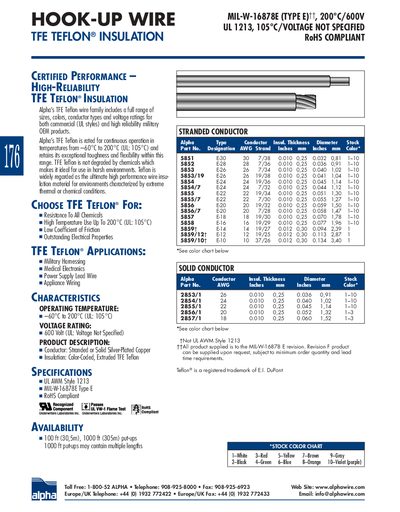

The MIL‑W‑16878E Type E wire is part of Alpha Wire's TFE Teflon family, offering a full range of sizes, colors, and conductor types for commercial (UL) and high‑reliability military applications. It features solid silver‑plated copper conductors, TFE Teflon® insulation, and is rated for continuous operation from –60 °C to 200 °C (UL 105 °C).
The wire is RoHS compliant, available in lengths of 100 ft and 1000 ft, and comes in a color‑coded chart (white, red, yellow, brown, gray, black, green, blue, orange, violet). Contact Alpha Wire via toll‑free 1‑800‑52‑ALPHA or visit www.alphawire.com for ordering information.
| Voltage Rating | 600 V (UL voltage not specified) |
|---|---|
| Insulation Material | TFE Teflon® |
| Conductor Type | Solid Silver‑Plated Copper |
| UL Style | 1213 |
| RoHS Compliance | Yes |
The wire is rated for 600 V, with the UL voltage not specified.
Yes, the wire is RoHS compliant.
