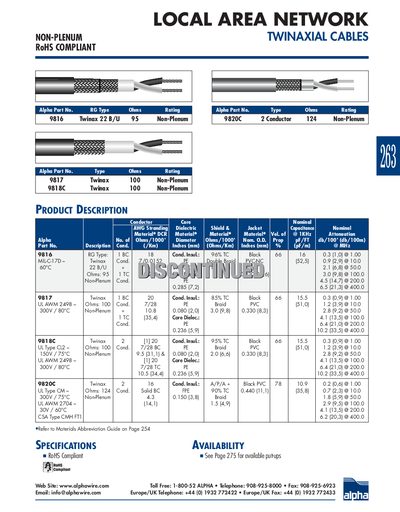

263 LOCAL AREA NETWORK TWINAXIAL CABLES NON-PLENUM RoHS COMPLIANT
This leaflet provides an overview of Alpha Wire's non‑plenum twinaxial cable family, including part numbers, construction details and applicable standards. The cables are designed for local area network applications and are RoHS compliant.
Technical tables give the nominal resistance, voltage and temperature ratings for each part number, together with material and shielding information. Contact details and website links are included for ordering and further technical support.
| Part No. 9816 – Resistance | 95 Ω/1000 ft |
|---|---|
| Part No. 9816 – Voltage/Temperature Rating | 300 V / 80 °C |
| Part No. 9817 – Resistance | 100 Ω/1000 ft |
| Part No. 9817 – Voltage/Temperature Rating | 300 V / 80 °C |
| Part No. 9818C – Resistance | 100 Ω/1000 ft |
| Part No. 9818C – Voltage/Temperature Rating | 150 V / 75 °C |
| Part No. 9820C – Resistance | 124 Ω/1000 ft |
| Part No. 9820C – Voltage/Temperature Rating | 30 V / 60 °C |
Yes, the cables are RoHS compliant as indicated on the sheet.
Part 9816 is rated for 300 V at 80 °C.
Visit www.alphawire.com or contact the listed phone numbers and email.
