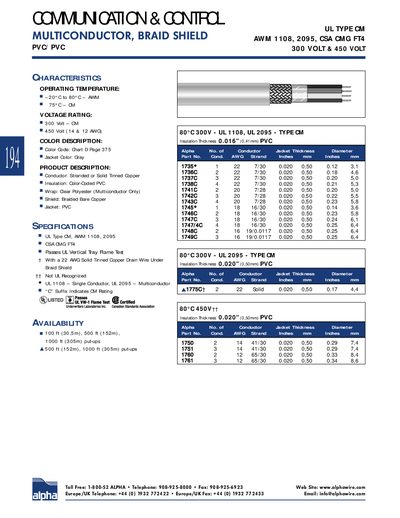

The document describes a communication and control multiconductor cable with braided shield PVC/PVC 194. The cable is suitable for operating temperatures from -20°C to 80°C and has voltage ratings of 300 volts and 450 volts. It consists of stranded or solid tinned copper conductors, color-coded PVC insulation, clear polyester wrap (for multiconductor), braided bare copper shield, and PVC jacket.
The Alpha UL Type CM series includes AWM 1108, 2095, and CSA CMG FT4 cable constructions. These cables are UL‑listed for 300 V (CM) and 450 V (CSA) applications and feature a multiconductor, braid‑shielded design with PVC insulation.
Key data such as operating temperature (‑20 °C to 80 °C), insulation thickness (0.016"‑0.020" PVC), conductor material (tinned copper), jacket color (gray), and detailed color‑code charts are provided to aid selection and installation.
| Operating Temperature | ‑20 °C to 80 °C (AWM) |
|---|---|
| Conductor Material | Stranded or Solid Tinned Copper |
| Jacket Color | Gray |
| Shield Type | Braided Bare Copper |
| UL Recognition | UL1108 – Single Conductor, UL2095 – Multiconductor |
| Color Code Reference | Chart D, page 375 |
The cables operate from –20 °C up to 80 °C (AWM).
The color‑code chart is listed on Chart D, page 375 of the document.
