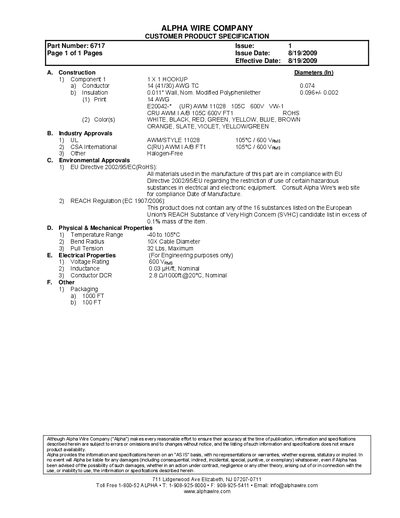

The Alpha Wire 6717 specification provides detailed construction data, including a 14 AWG conductor, 0.011" insulation wall, and available color options. It lists industry approvals such as UL and CSA, and confirms compliance with EU RoHS and REACH regulations.
Physical and mechanical properties include a temperature range of –40 °C to 105 °C, a bend radius of 10 × cable diameter, and a maximum pull tension of 32 lbs. Electrical properties cover a 600 V rating, 0.03 pH/t inductance, and a conductor DC resistance of 2.8 Ω·km at 20 °C. Packaging is offered in 100 ft and 1000 ft lengths.
| Conductor AWG | 14 AWG |
|---|---|
| Insulation thickness | 0.011" |
| Voltage rating | 600 Vems |
| Temperature range | -40 °C to 105 °C |
| Bend radius | 10 × cable diameter |
| Maximum pull tension | 32 lbs |
| Inductance | 0.03 pH/t |
| Conductor DCR | 2.8 Ω·km @20 °C |
| Packaging length | 100 ft and 1000 ft |
The voltage rating is 600 Vems.
It is approved by UL (AWMISTYLE 11028 105°C / 600 Vams) and CSA International (AWM | A/B FT1 105°C / 600 Vams) and is listed as other halogen‑free.
