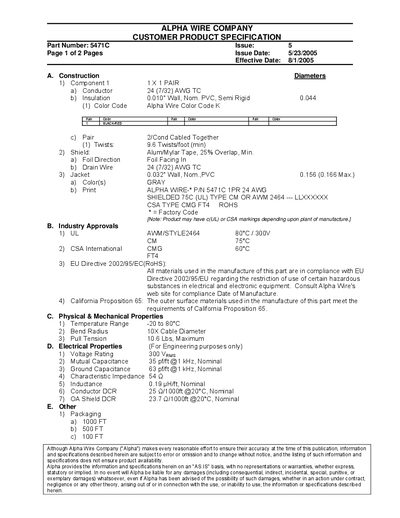

The Alpha Wire 5471C Customer Product Specification provides detailed information on the wire's construction, including conductor size, insulation, shielding, and jacket colors. It lists the physical and mechanical properties such as temperature range, bend radius, and pull tension.
Electrical characteristics are given, covering voltage rating, characteristic impedance, inductance, capacitance, and resistance values. The document also records industry approvals (UL, CSA, RoHS, California Proposition 65) and packaging options.
| Temperature Range | -20 to 80°C |
|---|---|
| Voltage Rating | 300 Vrms |
| Characteristic Impedance | 54 Ω |
| Inductance | 0.19 µH/ft |
| Conductor DCR | 25 Ω/1000ft @20°C |
| Shield DCR | 23.7 Ω/1000ft @20°C |
| Mutual Capacitance | 35 pF/ft @1 kHz |
| Ground Capacitance | 63 pF/ft @1 kHz |
| Pull Tension | 10.6 lbs (Maximum) |
| Bend Radius | 10× Cable Diameter |
The specified temperature range is -20 °C to 80 °C.
It is approved by UL (AWM/STYLE2464 80 °C/300 V), CSA International (CMG 60 °C FT4), complies with EU RoHS, and meets California Proposition 65 requirements.
The wire is rated for 300 Vrms.
It has a characteristic impedance of 54 Ω, inductance of 0.19 µH/ft, mutual capacitance of 35 pF/ft, ground capacitance of 63 pF/ft, conductor resistance of 25 Ω/1000 ft, and shield resistance of 23.7 Ω/1000 ft (all at 20 °C).
