The document provides specifications and characteristics of a cable called 9058C produced by Alpha Wire. The cable consists of an inner conductor, insulation, outer shield, and jacket. It complies with military standard MIL-C-17/28B RG 58C/U, as well as EU Directive 2002/95/EC (RoHS) and California Proposition 65. The cable exhibits good physical and mechanical properties and is suitable for use in environments with a temperature range of -20 to 60°C.

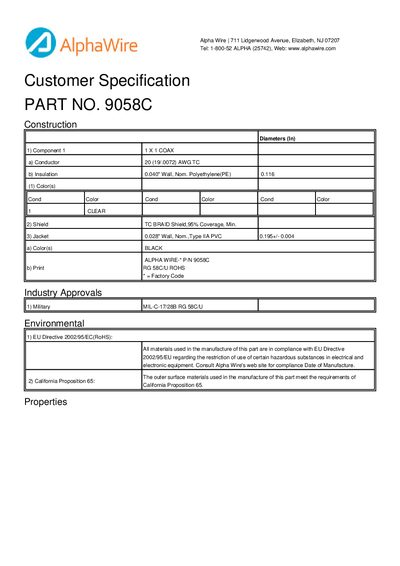

This Customer Specification provides the complete technical data for Alpha Wire part number 9058C, a coaxial cable. It includes construction details such as conductor size, insulation type, shield and jacket materials, as well as industry approvals like MIL-C-17/28B and RoHS compliance.
The document also lists physical and mechanical properties (temperature range, bend radius, pull tension) and electrical characteristics (voltage rating, impedance, capacitance, attenuation, etc.), along with packaging options and a RoHS Certificate of Compliance.
| Conductor size | 20 (19/.0072) AWG TC |
|---|---|
| Insulation wall thickness | 0.040" (Nom. Polyethylene) |
| Temperature range | -20 to 60°C |
| Bend radius | 10× cable diameter |
| Maximum pull tension | 12.3 lbs |
| Voltage rating | 1400 V |
| Ground capacitance | 30.8 pF/ft @1 kHz |
| Conductor DCR | 11.5 Ω·mil/ft @20°C |
| Shield DCR | 4.5 Ω·mil/ft @20°C |
| Voltage Withstanding | 5 kV minimum |
| Attenuation at 50 MHz | 4 dB/100 ft |
Yes, part 9058C is RoHS‑compliant, with certification effective from 8/1/2005 production.
The cable is rated for operation from –20 °C to 60 °C.
The cable has a voltage rating of 1400 V.
