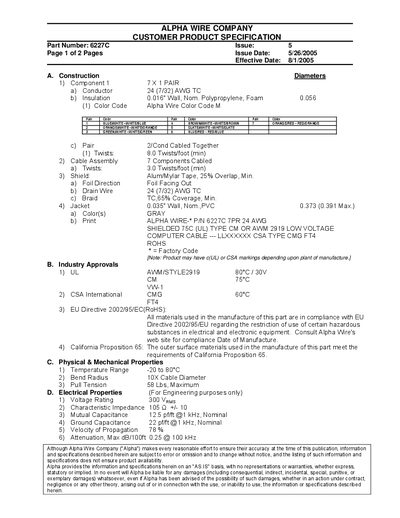

The Alpha Wire 6227C product specification provides detailed information on this shielded 75 °C UL/CSA cable, including its construction, materials, and dimensions.
It also lists the cable’s electrical performance such as a 300 Vrms voltage rating, 105 Ω characteristic impedance, and a temperature range of –20 °C to 80 °C, together with UL, CSA, RoHS and California Proposition 65 approvals.
| Conductor size | 24 (7/82) AWG TC |
|---|---|
| Insulation | 0.016" Wall, Nom. Polypropylene, Foam 0.056 |
| Jacket | 0.035" Wall, Nom., PVC 0.373 (0.391 Max.) |
| Temperature range | -20 to 80°C |
| Voltage rating | 300 Vrms |
| Characteristic impedance | 105 Ω ±10 |
| Mutual capacitance | 12.5 pF/ft @1 kHz |
| Ground capacitance | 22 pF/ft @1 kHz |
| Velocity of propagation | 78% |
| Attenuation (max) | 0.25 dB/100ft @100 kHz |
The cable is rated for 300 Vrms.
It can operate from –20 °C to 80 °C.
