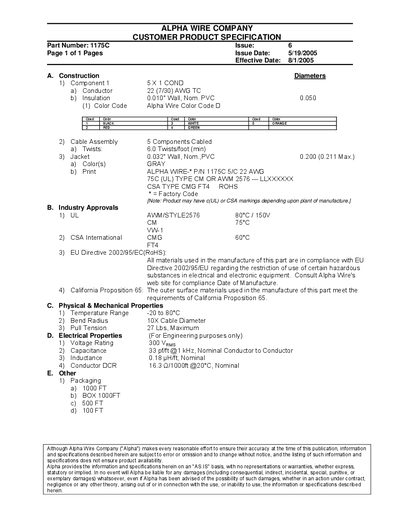

This one‑page specification provides the construction details for Alpha Wire part number 1175C, including conductor size, insulation, jacket, color code, and twist count. It also lists the applicable industry approvals such as UL, CSA, EU RoHS and California Proposition 65.
The sheet includes key electrical properties (voltage rating, capacitance, inductance, DCR), physical limits (temperature range, bend radius, pull tension) and the available packaging configurations ranging from 100 ft to 1000 ft rolls or boxed units.
| Conductor AWG | 22 |
|---|---|
| Insulation thickness | 0.010 in |
| Jacket thickness | 0.032 in |
| Temperature range | -20 to 80 °C |
| Voltage rating | 300 Vrms |
| Capacitance | 33 pF/ft @1 kHz |
| Inductance | 0.18 µH/ft |
| Conductor DCR | 16.3 Ω·mil/ft @20 °C |
| Packaging options | 100 ft, 500 ft, 1000 ft rolls or boxed 1000 ft |
The Alpha Wire 1175C is rated for 300 Vrms.
The wire is rated for temperatures from –20 °C to 80 °C.
It is offered in 100 ft, 500 ft, 1000 ft rolls and also in boxed 1000 ft units.
