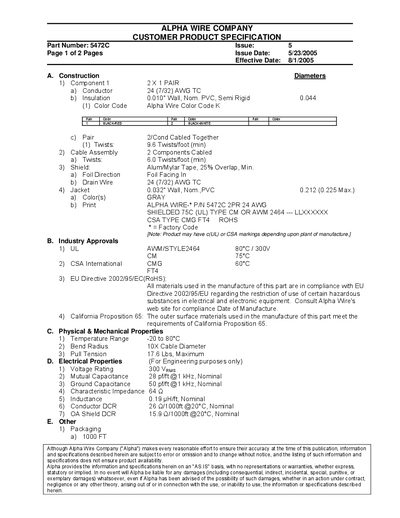

This document is the customer product specification of Alpha Wire Company, which describes the features and characteristics of the product with part number 5472C, including its construction, diameters, insulation material, color code, etc.
The Alpha Wire 5472C product specification provides detailed information on the construction of the 2‑pair cable, including conductor size, insulation type, shielding, and jacket material. It also lists the color code, twist rates, and physical dimensions such as bend radius and pull tension.
Electrical characteristics such as voltage rating, capacitance, impedance, inductance, and resistance are included, along with industry approvals (UL, CSA, RoHS, California Proposition 65). The document ends with packaging options and standard legal disclaimer statements.
| Temperature Range | -20 to 80°C |
|---|---|
| Voltage Rating | 300 Vrms |
| Mutual Capacitance | 28 pF/ft @1 kHz |
| Characteristic Impedance | 64 Ω |
| Inductance | 0.19 µH/ft |
| Conductor DCR | 26 Ω/1000 ft @20°C |
| Shield DCR | 15.9 Ω/1000 ft @20°C |
| Pull Tension (max) | 17.6 lbs |
| Bend Radius | 10× cable diameter |
It is approved to UL AWM/STYLE2464 80 °C/300 V CM 75 °C and CSA International CMG 60 °C FT4.
The cable can be used from –20 °C up to 80 °C.
Packaging is available in 1000 ft, 500 ft, 100 ft, or bulk (made‑to‑order).
The wire is rated for 300 Vrms.
