The Alpha Wire 6010C is a low‑cost power inductor designed for use in a variety of electronic applications. It features a 3‑pair construction with 22 AWG conductors, polypropylene insulation, and a gray PVC jacket.

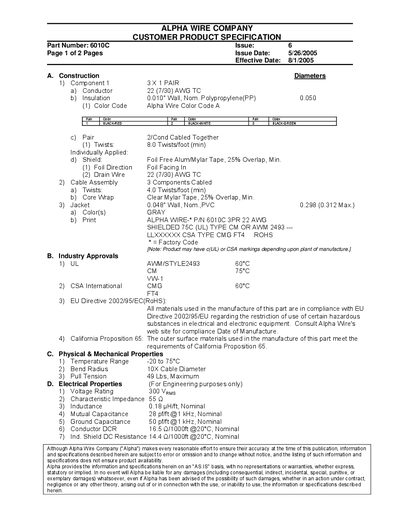

The specification sheet lists its electrical characteristics, including a 300 Vrms voltage rating, 0.18 µH/ft inductance, and 55 Ω characteristic impedance, as well as physical limits such as –20 °C to 75 °C operating temperature and 49 lb pull tension. The part complies with UL, CSA, RoHS, and California Proposition 65 requirements.
| Voltage Rating | 300 Vrms |
|---|---|
| Characteristic Impedance | 55 Ω |
| Inductance | 0.18 µH/ft (Nominal) |
| Mutual Capacitance | 28 pF/ft @1 kHz (Nominal) |
| Ground Capacitance | 50 pF/ft @1 kHz (Nominal) |
| Conductor DCR | 16.5 Ω/MΩ·ft @20 °C (Nominal) |
| Temperature Range | -20 °C to 75 °C |
| Pull Tension | 49 lbs (Maximum) |
The 6010C is rated for 300 Vrms.
The part operates from –20 °C to 75 °C.
The nominal inductance is 0.18 µH per foot.
