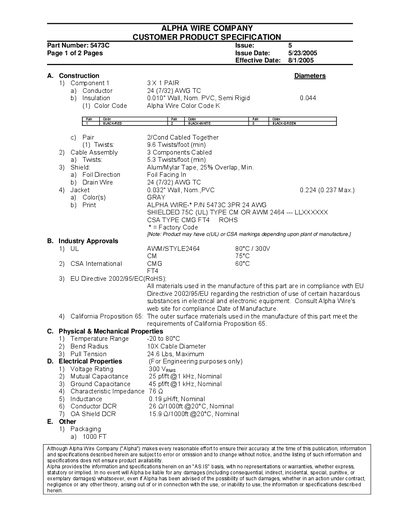

This document is a specification from Alpha Wire Company, describing the construction, diameters, wire components, shielding, and insulation characteristics of the 5473C product.
The Alpha Wire 5473C product specification provides detailed information on the construction of the cable, including conductor size, insulation, jacket thickness, and shielding. It also lists the physical and mechanical characteristics such as temperature range, bend radius, and pull tension.
Electrical properties are given for engineering use, covering voltage rating, capacitance, characteristic impedance, inductance, and DC resistance of both conductor and shield. The document includes industry approvals (UL, CSA, EU RoHS, California Proposition 65) and packaging options.
| Conductor AWG | 24 |
|---|---|
| Insulation wall thickness | 0.010 in |
| Jacket wall thickness | 0.032 in |
| Temperature range | -20 to 80°C |
| Voltage rating | 300 Vrms |
| Mutual capacitance | 25 pF/ft @1 kHz |
| Ground capacitance | 45 pF/ft @1 kHz |
| Characteristic impedance | 76 Ω |
| Inductance | 0.19 µH/ft |
| Conductor DCR | 26 Ω/MΩ00ft @20°C |
| Shield DCR | 15.9 Ω/MΩ00ft @20°C |
The voltage rating is 300 Vrms.
It can operate from –20 °C to 80 °C.
The characteristic impedance is 76 Ω.
